Ophthalmology Department
AN-HDR-500牙片X光机传感器

AN-digital oral X-ray imaging system HDR-500/600

Direct USB output, with a more technological and compact appearance Cost-effective, better service...

  • Features
  • Specifications

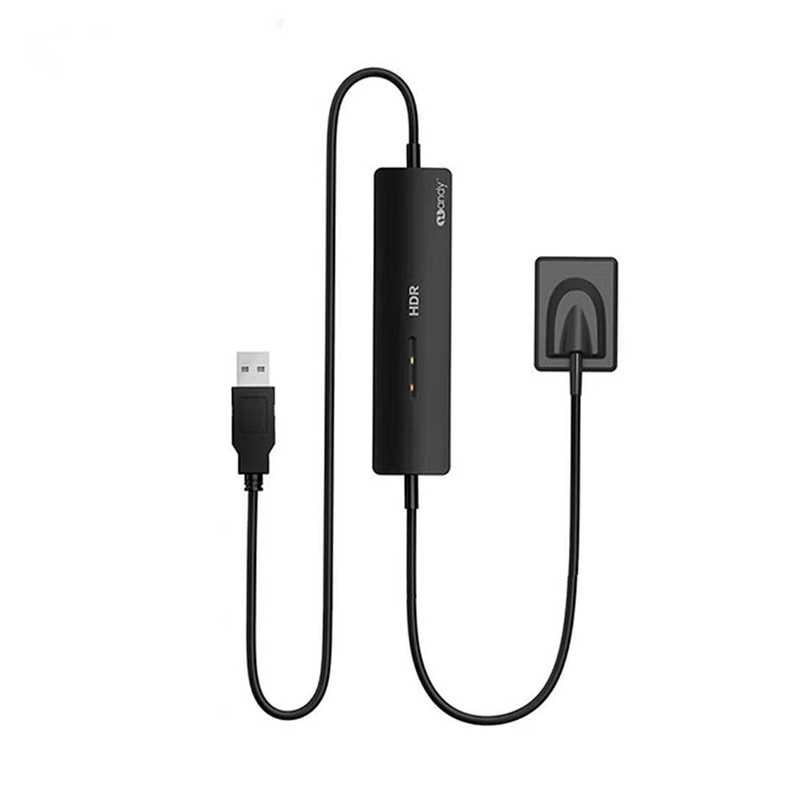

AN-digital oral X-ray imaging system HDR-500/600

    AN-digital oral X-ray imaging system HDR-500/600

    Scintillator upgrade, CsI chip: Ti technology
    Higher resolution, more detailed image output
    Direct USB output, with a more technological and compact appearance
    Cost-effective, better service
    In addition to having a more stylish and lightweight appearance, it can also be upgraded to a CsI scintillator
    Its advantages are wider spectral dynamic range, higher light conversion efficiency, and better detail performance


    After 10 years of market verification, the effective imaging area of the oral scanner is in line with the global average tooth length, and the image is more complete and clearer.

    Technical data

    Sensor: APS CMOS

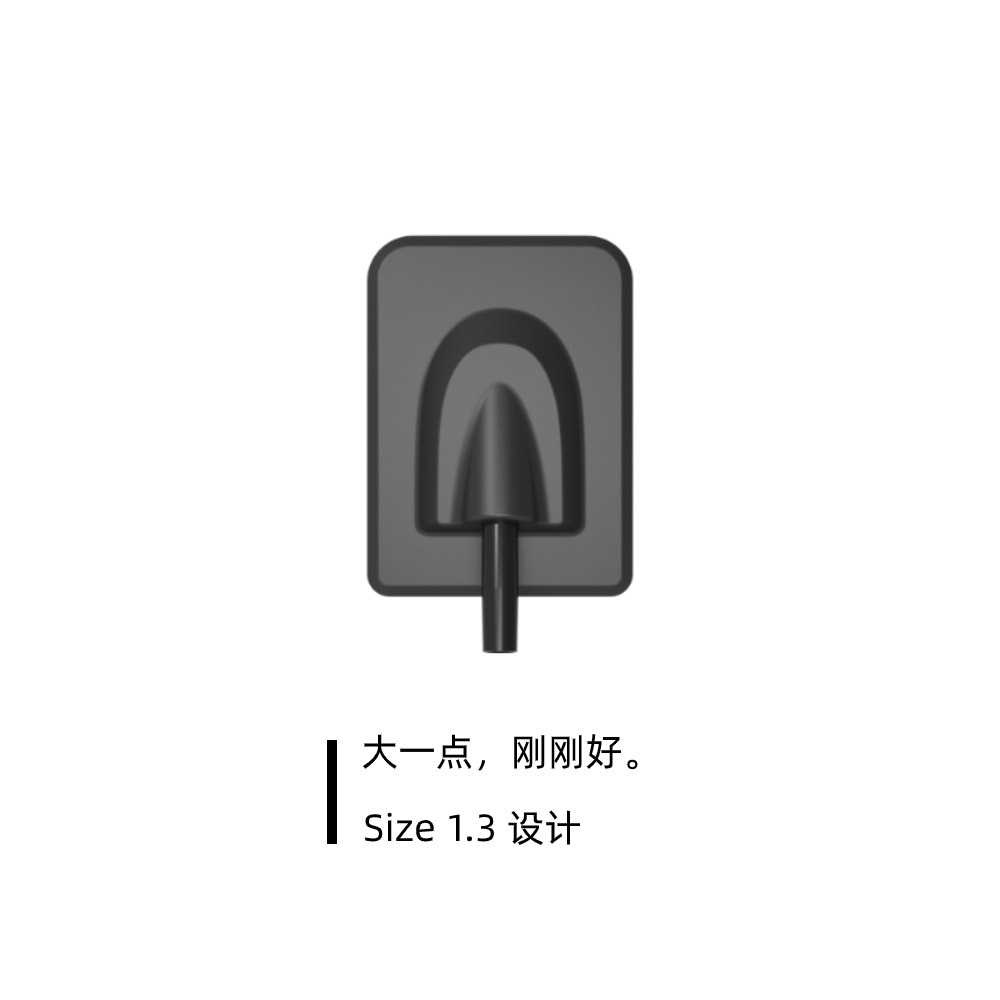

    External dimensions of the sensor (mm): 38.5*27.5*6mm (size 1); 32.3*44.3*6mm (size 2)
    Sensor activity area: 22.5×30 (size 1) 1): 27×36 (size 2)
    Sensor thickness: 6mm
    Dynamic range: 4,096
    Power: USB2.0 (5V, 4.25 minutes)
    The plug and playback connector enable the sensor to be transmitted from room to room.
    Image transmission time: <3 seconds
    Cable length: >2 meters


    System Requirements


    Processor: Intel 1.2GHz chip or above:
    Memory: Above 1G:
    Hard Disk: Above 40G:
    Interface: USB 2.0: Display: Resolution 1024×758 (15")
    Operating system and above: Windows XP
    The computer connected to the system shall comply with IEC 60950-1:2005.
