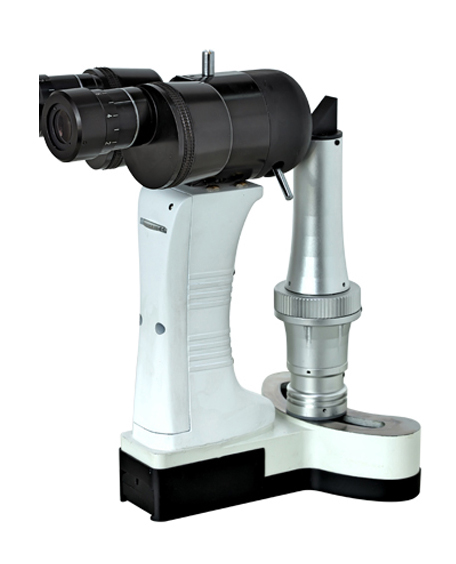

This product has complete functions, is light and durable, and is suitable for mobile medical, community hospitals and wards.

Features:
• The optical path adopts the cross-angle stereo design, which is comfortable to observe and clear images;
•The lighting adopts LED light source, which has a long service life, and the patient feels more comfortable;
•The weight of the whole machine is only 900 grams, which is simple and practical.
• Large battery capacity, uniform light spot, easy to switch
•Dial lever type two-speed zoom
•Professional slit lamp optical system, multi-layer coating, excellent optical performance.

Technical Parameter:

Type Angled Stereo
Change the magnification form, the objective lens can be changed in two gears
Magnification 10X, 16X
Diopter compensation ±6D
Interpupillary distance 50-75mm
Net weight 900g
Crack width 0-12mm continuously adjustable
Spot diameter 0.2mm, 1mm, 5mm, 12mm
Color filter, dimmer, no red, cobalt blue
Light source LED bulb
Maximum illumination 30000Lx
Power supply Lithium battery
Working time 2.5 hours of normal use



(1) Optical performance

Microscope parameters

Eyepiece 10×
Total magnification 10×, 16×
Field of view diameter Φ15, Φ10
Diopter adjustment ±8D

Lighting parameters
Crack width 0～12mm continuously adjustable
Spot diameter 0.2mm, 1mm, 5mm, 12mm

Illumination not less than 30000lx
Lighting source: white LED
Filter Cobalt blue film, no red film, color temperature conversion film

(2) Structural performance

Interpupillary distance adjustment range 50～75mm
Working distance 60mm

(3) Electrical performance
Working time The maximum brightness is 1.5 hours in normal use
Power supply Lithium battery

(4) Weight and size

Suitcase size 250×245×170mm
Total weight 2200g
Net weight 900g
