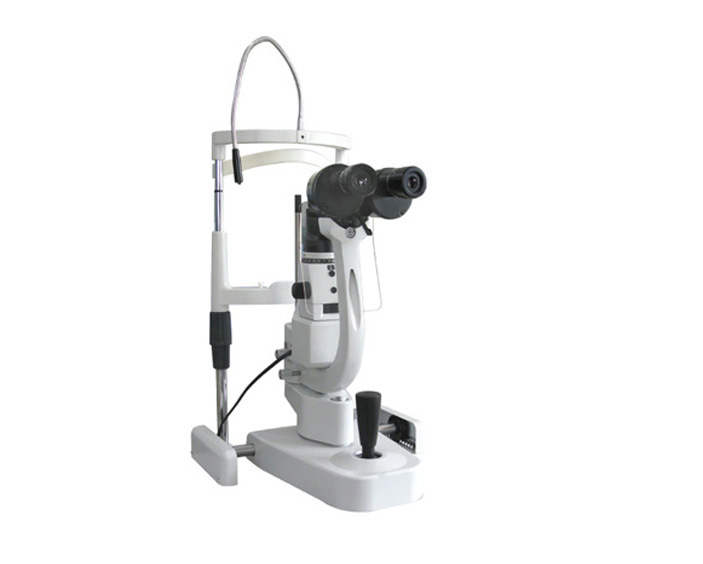

The AN-YZ5X slit lamp microscope adopts a lower light source design, with a simple structure and reliable performance. It can meet the basic needs of optometry and ophthalmology. It is an extremely cost-effective  Excellent product.


Features

· ◆ The optical path of the microscope adopts an advanced cross-angle design to obtain a clear image;
· ◆ The main lenses are made of imported materials to ensure high definition and brightness;
· ◆ The spot diameter reaches 14 mm, and the field of view is wider;
· ◆ The whole machine is flexible and light, and the structure is simple and reliable.

Technical Parameter

Model YZ5X
Microscope type: angle type
Variable magnification form: objective lens can be changed in two gears
Eyepiece 10×
Total magnification and field of view (mm) 10×(φ 18), 16×(φ 14.5)
Interpupillary distance adjustment range (mm) 54mm～80mm
Diopter adjustment ±6D
Crack width (mm) 0～14mm continuously adjustable (at 14mm, round shape)
Crack height (mm) 1mm～14mm continuously adjustable
Fissure angle 0°～180° rotation, continuously adjustable from vertical to horizontal
Spot diameter (mm) Æ14, Æ9, Æ5.5, Æ0.3
Color filter heat insulation film, no red film, cobalt blue film
Lighting bulb 6V/20W halogen bulb
Maximum illumination ≧150,000 Lx
